JIT Compiler Structure

Introduction

RyuJIT is the code name for the Just-In-Time Compiler (aka “JIT”) for the .NET runtime. It was evolved from the JIT used for x86 (jit32) on .NET Framework, and ported to support all other architecture and platform targets supported by .NET Core.

The primary design considerations for RyuJIT are to:

The first objective was the primary motivation for evolving the existing code base, rather than starting from scratch or departing more drastically from the existing IR and architecture.

Execution Environment and External Interface

RyuJIT provides both just-in-time and ahead-of-time compilation service for the .NET runtime. The runtime itself is variously called the EE (execution engine), the VM (virtual machine), or simply the CLR (common language runtime). Depending upon the configuration, the EE and JIT may reside in the same or different executable files. RyuJIT implements the JIT side of the JIT/EE interfaces:

Internal Representation (IR)

Compiler object

The Compiler object is the primary data structure of the JIT. While it is not part of the JIT’s IR per se, it serves as the root from which the data structures that implement the IR are accessible. For example, the Compiler object points to the head of the function’s BasicBlock list with the fgFirstBB field, as well as having additional pointers to the end of the list, and other distinguished locations. ICorJitCompiler::compileMethod() is invoked for each method, and creates a new Compiler object. Thus, the JIT need not worry about thread synchronization while accessing Compiler state. The EE has the necessary synchronization to ensure there is a single JIT compiled copy of a method when two or more threads try to trigger JIT compilation of the same method.

Overview of the IR

RyuJIT represents a function as a doubly-linked list of BasicBlock values. Each BasicBlock has explicit edges to its successors that define the function’s non-exceptional control flow. Exceptional control flow is implicit, with protected regions and handlers described in a table of EHblkDsc values. At the beginning of a compilation, each BasicBlock contains nodes in a high-level, statement- and tree-oriented form (HIR: “high-level intermediate representation”); this form persists throughout the JIT’s front end. During the first phase of the back end–the rationalization phase–the HIR for each block is lowered to a linearly-ordered, node-oriented form (LIR: “low-level intermediate representation”). The fundamental distinction between HIR and LIR is in ordering semantics, though there are also some restrictions on the types of nodes that may appear in an HIR or LIR block.

Both HIR and LIR blocks are composed of GenTree nodes that define the operations performed by the block. A GenTree node may consume some number of operands and may produce a singly-defined, at-most-singly-used value as a result. These values are referred to interchangeably as SDSU (single def, single use) temps or tree temps. Definitions (aka, defs) of SDSU temps are represented by GenTree nodes themselves, and uses are represented by edges from the using node to the defining node. Furthermore, SDSU temps defined in one block may not be used in a different block. In cases where a value must be multiply-defined, multiply-used, or defined in one block and used in another, the IR provides another class of temporary: the local var (aka, local variable). Local vars are defined by store nodes and used by users of local var nodes.

An HIR block is composed of a doubly-linked list of statement nodes (Statement), each of which references a single expression tree (m_rootNode). The GenTree nodes in this tree execute in “tree order”, which is defined as the order produced by a depth-first, left-to-right traversal of the tree, with one notable exception:

In addition to tree order, HIR also requires that no SDSU temp is defined in one statement and used in another. In situations where the requirements of tree and statement order prove onerous (e.g. when code must execute at a particular point in a function), HIR provides GT_COMMA nodes as an escape valve: these nodes consume and discard the results of their left-hand side while producing a copy of the value produced by their right-hand side. This allows the compiler to insert code in the middle of a statement without requiring that the statement be split apart.

An LIR block is composed of a doubly-linked list of GenTree nodes, each of which describes a single operation in the method. These nodes execute in the order given by the list; there is no relationship between the order in which a node’s operands appear and the order in which the operators that produced those operands execute. The only exception to this rule occurs after the register allocator, which may introduce GT_COPY and GT_RELOAD nodes that execute in “spill order”. Spill order is defined as the order in which the register allocator visits a node’s operands. For correctness, the code generator must generate code for spills, reloads, and GT_COPY/GT_RELOAD nodes in this order.

In addition to HIR and LIR BasicBlocks, a separate representation–insGroup and instrDesc–is used during the actual instruction encoding.

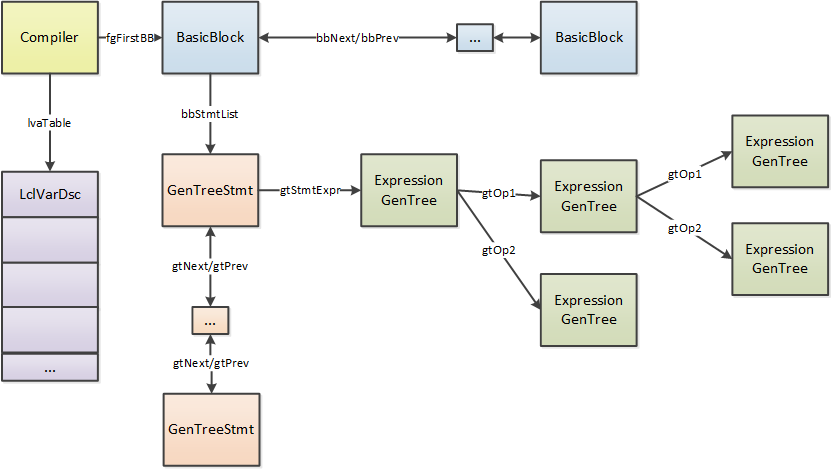

(Note that this diagram is slightly out-of-date: GenTreeStmt no longer exists, and is replaced by Statement nodes in the IR.)

RyuJIT IR Overview

GenTree Nodes

Each operation is represented as a GenTree node, with an opcode (GT_xxx), zero or more child/operand GenTree nodes, and additional fields as needed to represent the semantics of that node. Every node includes its type, value number, assertions, register assignments, etc. when available.

GenTree nodes are doubly-linked in execution order, but the links are not necessarily valid during all phases of the JIT. In HIR these links are primarily a convenience, as the order produced by a traversal of the links must match the order produced by a “tree order” traversal (see above for details). In LIR these links define the execution order of the nodes.

HIR statement nodes are represented by the Statement type.

Local var descriptors

A LclVarDsc represents a possibly-multiply-defined, possibly-multiply-used temporary. These temporaries may be used to represent user local variables, arguments or JIT-created temps. Each lclVar has a gtLclNum which is the identifier usually associated with the variable in the JIT and its dumps. The LclVarDsc contains the type, use count, weighted use count, frame or register assignment, etc. A local var may be “tracked” (lvTracked), in which case it participates in dataflow analysis, and has a secondary name (lvVarIndex) that allows for the use of dense bit vectors.

Example of Post-Import IR

For this snippet of code (extracted from src/tests/JIT/CodeGenBringUpTests/DblRoots.cs), with DOTNET_TieredCompilation=0 and using the DblRoots_ro.csproj project to compile it:

   r1 = (-b + Math.Sqrt(b*b - 4*a*c))/(2*a);

A stripped-down dump of the GenTree nodes just after they are imported looks like this:

STMT00000 (IL 0x000...0x026)
▌  STOREIND  double
├──▌  LCL_VAR   byref  V03 arg3
└──▌  DIV       double
   ├──▌  ADD       double
   │  ├──▌  NEG       double
   │  │  └──▌  LCL_VAR   double V01 arg1
   │  └──▌  INTRINSIC double sqrt
   │     └──▌  SUB       double
   │        ├──▌  MUL       double
   │        │  ├──▌  LCL_VAR   double V01 arg1
   │        │  └──▌  LCL_VAR   double V01 arg1
   │        └──▌  MUL       double
   │           ├──▌  MUL       double
   │           │  ├──▌  CNS_DBL   double 4.0000000000000000
   │           │  └──▌  LCL_VAR   double V00 arg0
   │           └──▌  LCL_VAR   double V02 arg2
   └──▌  MUL       double
      ├──▌  CNS_DBL   double 2.0000000000000000
      └──▌  LCL_VAR   double V00 arg0

Types

The JIT is primarily concerned with “primitive” types, i.e. integers, reference types, pointers, floating point and SIMD types. It must also be concerned with the format of user-defined value types (i.e. struct types derived from System.ValueType) – specifically, their size and the offset of any GC references they contain, so that they can be correctly initialized and copied. The primitive types are represented in the JIT by the var_types enum, and any additional information required for struct types is obtained from the JIT/EE interface by the use of an opaque CORINFO_CLASS_HANDLE, which is converted into a ClassLayout instance that caches the most important information. All TYP_STRUCT-typed nodes can be queried for the layout they produce via GenTree::GetLayout.

Some nodes also use “small” integer types - TYP_BYTE, TYP_UBYTE, TYP_SHORT and TYP_USHORT, to represent that they produce implicitly sign- or zero-extended TYP_INT values, much like in the IL stack model.

Dataflow Information

In order to limit throughput impact, the JIT limits the number of lclVars for which liveness information is computed. These are the tracked lclVars (lvTracked is true), and they are the only candidates for register allocation (i.e. only these lclVars may be assigned registers over their entire lifetime). Defs and uses of untracked lclVars are treated as stores and loads to/from the appropriate stack location, and the corresponding nodes act as normal operators during register allocation.

The liveness analysis determines the set of defs, as well as the uses that are upward exposed, for each block. It then propagates the liveness information. The result of the analysis is captured in the following:

SSA

Static single assignment (SSA) form is constructed in a traditional manner [1]. The SSA names are recorded on the lclVar references and point to the LclSsaVarDsc descriptors that contain the defining store node and block in which it occurs.

Value Numbering

Value numbering utilizes SSA for lclVar values, but also performs value numbering of expression trees. It takes advantage of type safety by not invalidating the value number for field references with a heap write, unless the write is to the same field. The IR nodes are annotated with the value numbers, which are indexes into a type-specific value number store. Value numbering traverses the trees, performing symbolic evaluation of many operations.

Phases of RyuJIT

The top-level function of interest is Compiler::compCompile. It invokes the following phases in order.

Phase IR Transformations
Pre-import Compiler->lvaTable created and filled in for each user argument and variable. BasicBlock list initialized.
Importation GenTree nodes created and linked in to Statement nodes, and Statements into BasicBlocks. Inlining candidates identified.
Inlining The IR for inlined methods is incorporated into the flowgraph.
Struct Promotion New lclVars are created for each field of a promoted struct.
Mark Address-Exposed Locals lclVars with references occurring in an address-taken context are marked. This must be kept up-to-date.
Early liveness Compute lclVar liveness for use by phases up to and including global morph.
Forward Subtitution Eliminate SDSU-like locals by substituting their values directly into uses.
Physical promotion Split struct locals into primitives based on access patterns.
Morph Blocks Performs localized transformations, including mandatory normalization as well as simple optimizations.
Eliminate Qmarks All GT_QMARK nodes are eliminated, other than simple ones that do not require control flow.
Flowgraph Analysis Loops are identified and normalized, cloned and/or unrolled.
Normalize IR for Optimization lclVar references counts are set, and must be kept valid. Evaluation order of GenTree nodes (gtNext/gtPrev) is determined, and must be kept valid.
SSA and Value Numbering Optimizations Computes liveness (bbLiveIn and bbLiveOut on BasicBlocks), and dominators. Builds SSA for tracked lclVars. Computes value numbers.
Loop Invariant Code Hoisting Hoists expressions out of loops.
Copy Propagation Copy propagation based on value numbers.
Common Subexpression Elimination (CSE) Elimination of redundant subexressions based on value numbers.
Assertion Propagation Utilizes value numbers to propagate and transform based on properties such as non-nullness.
Range analysis Eliminate array index range checks based on value numbers and assertions
Induction variable optimization Optimize induction variables used inside natural loops based on scalar evolution analysis
VN-based dead store elimination Eliminate stores that do not change the value of a local.
If conversion Transform conditional definitions into GT_SELECT operators.
Rationalization Flowgraph order changes from FGOrderTree to FGOrderLinear. All GT_COMMA nodes are transformed.
Lowering Nodes are tranformed for register allocation; Target-specific optimizations are performed.
Register allocation Registers are assigned (gtRegNum and/or gtRsvdRegs), and the number of spill temps calculated.
Code Generation Determines frame layout. Generates code for each BasicBlock. Generates prolog & epilog code for the method. Emits EH, GC and Debug info.

Pre-import

Prior to reading in the IL for the method, the JIT initializes the local variable table, and scans the IL to find branch targets and form BasicBlocks.

Importation

Importation is the phase that creates the IR for the method, reading in one IL instruction at a time, and building up the statements. During this process, it may need to generate IR with multiple, nested expressions. This is the purpose of the non-expression-like IR nodes:

During importation, tail call candidates (either explicitly marked or opportunistically identified) are identified and flagged. They are further validated, and possibly unmarked, during morphing.

Morphing

The fgMorph phase includes a number of transformations:

Inlining

The fgInline phase determines whether each call site is a candidate for inlining. The initial determination is made via a state machine that runs over the candidate method’s IL. It estimates the native code size corresponding to the inline method, and uses a set of heuristics, including the estimated size of the current method, to determine if inlining would be profitable. If so, a separate Compiler object is created, and the importation phase is called to create the tree for the candidate inline method. Inlining may be aborted prior to completion, if any conditions are encountered that indicate that it may be unprofitable (or otherwise incorrect). If inlining is successful, the inlinee compiler’s trees are incorporated into the inliner compiler (the “parent”), with arguments and return values appropriately transformed.

Struct Promotion

Struct promotion (fgPromoteStructs()) analyzes the local variables and temps, and determines if their fields are candidates for tracking (and possibly enregistering) separately. It first determines whether it is possible to promote, which takes into account whether the layout may have holes or overlapping fields, whether its fields (flattening any contained structs) will fit in registers, etc.

Next, it determines whether it is likely to be profitable, based on the number of fields, and whether the fields are individually referenced.

When a lclVar is promoted, there are now N+1 lclVars for the struct, where N is the number of fields. The original struct lclVar is not considered to be tracked, but its fields may be.

Mark Address-Exposed Locals

This phase traverses the expression trees, propagating the context (e.g. taking the address, indirecting) to determine which lclVars have their address taken, and which therefore will not be register candidates. If a struct lclVar has been promoted, and is then found to be address-taken, it will be considered “dependently promoted”, which is an odd way of saying that the fields will still be separately tracked, but they will not be register candidates.

Morph Blocks

What is often thought of as “morph” involves localized transformations to the trees. In addition to performing simple optimizing transformations, it performs some normalization that is required, such as converting field and array accesses into pointer arithmetic. It can (and must) be called by subsequent phases on newly added or modified trees. During the main Morph phase, the boolean fgGlobalMorph is set on the Compiler argument, which governs which transformations are permissible.

Eliminate Qmarks

This expands most GT_QMARK/GT_COLON trees into blocks, except for the case that is instantiating a condition.

Flowgraph Analysis

At this point, a number of analyses and transformations are done on the flowgraph:

Normalize IR for Optimization

At this point, a number of properties are computed on the IR, and must remain valid for the remaining phases. We will call this “normalization”

SSA and Value Numbering Optimizations

The next set of optimizations are built on top of SSA and value numbering. First, the SSA representation is built (during which dataflow analysis, aka liveness, is computed on the lclVars), then value numbering is done using SSA.

Loop Invariant Code Hoisting

This phase traverses all the loop nests, in outer-to-inner order (thus hoisting expressions outside the largest loop in which they are invariant). It traverses all of the statements in the blocks in the loop that are always executed. If the statement is:

Copy Propagation

This phase walks each block in the graph (in dominator-first order, maintaining context between dominator and child) keeping track of every live definition. When it encounters a variable that shares the VN with a live definition, it is replaced with the variable in the live definition.

The JIT currently requires that the IR be maintained in conventional SSA form, as there is no “out of SSA” translation (see the comments on optVnCopyProp() for more information).

Common Subexpression Elimination (CSE)

Utilizes value numbers to identify redundant computations, which are then evaluated to a new temp lclVar, and then reused.

Assertion Propagation

Utilizes value numbers to propagate and transform based on properties such as non-nullness.

Induction variable optimization

Performs scalar evolution analysis and utilized it to optimize induction variables inside loops. Currently this entails IV widening which is done on x64 only.

Range analysis

Optimize array index range checks based on value numbers and assertions.

VN-based dead store elimination

Walks over the SSA descriptors and removes definitions where the new value is identical to the previous. This phase invalidates both SSA and value numbers; after this point both should be considered stale.

If Conversion

Uses simple analysis to transform conditional definitions of locals into unconditional GT_SELECT nodes, which will can later be emitted as, e. g., conditional moves.

Rationalization

As the JIT has evolved, changes have been made to improve the ability to reason over the tree in both “tree order” and “linear order”. These changes have been termed the “rationalization” of the IR. In the spirit of reuse and evolution, some of the changes have been made only in the later (“backend”) components of the JIT. The corresponding transformations are made to the IR by a “Rationalizer” component. It is expected that over time some of these changes will migrate to an earlier place in the JIT phase order:

For our earlier example (Example of Post-Import IR), here is what the simplified dump looks like just prior to Rationalization (the $ annotations are value numbers). Note that some common subexpressions have been computed into new temporary lclVars, and that computation has been inserted as a GT_COMMA (comma) node in the IR:

STMT  (IL 0x000...0x026)
▌  STOREIND  double $VN.Void
├──▌  LCL_VAR   byref  V03 arg3         u:1 (last use) $c0
└──▌  DIV       double $146
   ├──▌  ADD       double $144
   │  ├──▌  COMMA     double $83
   │  │  ├──▌  STORE_LCL_VAR double V06 cse0         d:1 $83
   │  │  │  └──▌  INTRINSIC double sqrt $83
   │  │  │     └──▌  SUB       double $143
   │  │  │        ├──▌  MUL       double $140
   │  │  │        │  ├──▌  LCL_VAR   double V01 arg1         u:1 $81
   │  │  │        │  └──▌  LCL_VAR   double V01 arg1         u:1 $81
   │  │  │        └──▌  MUL       double $142
   │  │  │           ├──▌  MUL       double $141
   │  │  │           │  ├──▌  LCL_VAR   double V00 arg0         u:1 $80
   │  │  │           │  └──▌  CNS_DBL   double 4.0000000000000000 $180
   │  │  │           └──▌  LCL_VAR   double V02 arg2         u:1 $82
   │  │  └──▌  LCL_VAR   double V06 cse0         u:1 $83
   │  └──▌  COMMA     double $84
   │     ├──▌  STORE_LCL_VAR double V08 cse2         d:1 $84
   │     │  └──▌  NEG       double $84
   │     │     └──▌  LCL_VAR   double V01 arg1         u:1 $81
   │     └──▌  LCL_VAR   double V08 cse2         u:1 $84
   └──▌  COMMA     double $145
      ├──▌  STORE_LCL_VAR double V07 cse1         d:1 $145
      │  └──▌  MUL       double $145
      │     ├──▌  LCL_VAR   double V00 arg0         u:1 $80
      │     └──▌  CNS_DBL   double 2.0000000000000000 $181
      └──▌  LCL_VAR   double V07 cse1         u:1 $145

After Rationalize, the nodes are presented in execution order, and the GT_COMMA (comma) and Statement nodes have been eliminated:

        IL_OFFSET void   IL offset: 0x0
t3 =    LCL_VAR   double V01 arg1         u:1 $81
t4 =    LCL_VAR   double V01 arg1         u:1 $81
     ┌──▌  t3     double
     ├──▌  t4     double
t5 = ▌  MUL       double $140
t7 =    LCL_VAR   double V00 arg0         u:1 $80
t6 =    CNS_DBL   double 4.0000000000000000 $180
     ┌──▌  t7     double
     ├──▌  t6     double
t8 = ▌  MUL       double $141
t9 =    LCL_VAR   double V02 arg2         u:1 $82
     ┌──▌  t8     double
     ├──▌  t9     double
10 = ▌  MUL       double $142
     ┌──▌  t5     double
     ├──▌  t10    double
11 = ▌  SUB       double $143
     ┌──▌  t11    double
12 = ▌  INTRINSIC double sqrt $83
     ┌──▌  t12    double
     ▌  STORE_LCL_VAR double V06 cse0         d:1
43 =    LCL_VAR   double V06 cse0         u:1 $83
t1 =    LCL_VAR   double V01 arg1         u:1 $81
     ┌──▌  t1     double
t2 = ▌  NEG       double $84
     ┌──▌  t2     double
     ▌  STORE_LCL_VAR double V08 cse2         d:1
53 =    LCL_VAR   double V08 cse2         u:1 $84
     ┌──▌  t43    double
     ├──▌  t53    double
13 = ▌  ADD       double $144
15 =    LCL_VAR   double V00 arg0         u:1 $80
14 =    CNS_DBL   double 2.0000000000000000 $181
     ┌──▌  t15    double
     ├──▌  t14    double
16 = ▌  MUL       double $145
     ┌──▌  t16    double
     ▌  STORE_LCL_VAR double V07 cse1         d:1
48 =    LCL_VAR   double V07 cse1         u:1 $145
     ┌──▌  t13    double
     ├──▌  t48    double
17 = ▌  DIV       double $146
t0 =    LCL_VAR   byref  V03 arg3         u:1 (last use) $c0
     ┌──▌  t0     byref
     ├──▌  t17    double
     ▌  STOREIND  double
        IL_OFFSET void   IL offset: 0x27
55 =    LCL_VAR   double V08 cse2         u:1 $84
45 =    LCL_VAR   double V06 cse0         u:1 $83
     ┌──▌  t55    double
     ├──▌  t45    double
33 = ▌  SUB       double $147
50 =    LCL_VAR   double V07 cse1         u:1 $145
     ┌──▌  t33    double
     ├──▌  t50    double
37 = ▌  DIV       double $148
20 =    LCL_VAR   byref  V04 arg4         u:1 (last use) $c1
     ┌──▌  t20    byref
     ├──▌  t37    double
     ▌  STOREIND  double
        IL_OFFSET void   IL offset: 0x4f
        RETURN    void   $200

Lowering

Lowering is responsible for transforming the IR in such a way that the control flow, and any register requirements, are fully exposed.

It does an execution-order traversal that performs context-dependent transformations such as

For example, this:

t47 =    LCL_VAR   ref    V00 arg0
t48 =    LCL_VAR   int    V01 arg1
      ┌──▌  t48    int
t51 = ▌  CAST      long <- int
t52 =    CNS_INT   long   2
      ┌──▌  t51    long
      ├──▌  t52    long
t53 = ▌  LSH       long
t54 =    CNS_INT   long   16 Fseq[#FirstElem]
      ┌──▌  t53    long
      ├──▌  t54    long
t55 = ▌  ADD       long
      ┌──▌  t47    ref
      ├──▌  t55    long
t56 = ▌  ADD       byref
      ┌──▌  t56    byref
t44 = ▌  IND       int

Is transformed into this, in which the addressing mode is explicit:

t47 =    LCL_VAR   ref    V00 arg0
t48 =    LCL_VAR   int    V01 arg1
      ┌──▌  t48    int
t51 = ▌  CAST      long <- int
      ┌──▌  t47    ref
      ├──▌  t51    long
t79 = ▌  LEA(b+(i*4)+16) byref
      ┌──▌  t79    byref
t44 = ▌  IND       int

Sometimes Lowering will insert nodes into the execution order before the node that it is currently handling. In such cases, it must ensure that they themselves are properly lowered. This includes:

After all nodes are lowered, liveness is run in preparation for register allocation.

Register allocation

The RyuJIT register allocator uses a Linear Scan algorithm, with an approach similar to [2]. In discussion it is referred to as either LinearScan (the name of the implementing class), or LSRA (Linear Scan Register Allocation). In brief, it operates on two main data structures:

LinearScan::buildIntervals() traverses the entire method building RefPositions and Intervals as required. For example, for the STORE_BLK node in this snippet:

t67 =    CNS_INT(h) long   0x2b5acef2c50 static Fseq[s1]
     ┌──▌  t67    long
 t0 = ▌  IND       ref
 t1 =    CNS_INT   long   8 Fseq[#FirstElem]
     ┌──▌  t0     ref
     ├──▌  t1     long
 t2 = ▌  ADD       byref
     ┌──▌  t2     byref
 t3 = ▌  IND       struct
t31 =    LCL_VAR_ADDR byref  V08 tmp1
     ┌──▌  t31    byref
     ├──▌  t3     struct
      ▌  STORE_BLK(40) struct (copy) (Unroll)

the following RefPositions are generated:

N027 (???,???) [000085] -A-XG-------              ▌  STORE_BLK(40) struct (copy) (Unroll) REG NA
Interval 16: int RefPositions {} physReg:NA Preferences=[allInt]
<RefPosition #40  @27  RefTypeDef <Ivl:16 internal> STORE_BLK BB01 regmask=[allInt] minReg=1>
Interval 17: float RefPositions {} physReg:NA Preferences=[allFloat]
<RefPosition #41  @27  RefTypeDef <Ivl:17 internal> STORE_BLK BB01 regmask=[allFloat] minReg=1>
<RefPosition #42  @27  RefTypeUse <Ivl:15> BB01 regmask=[allInt] minReg=1 last>
<RefPosition #43  @27  RefTypeUse <Ivl:16 internal> STORE_BLK BB01 regmask=[allInt] minReg=1 last>
<RefPosition #44  @27  RefTypeUse <Ivl:17 internal> STORE_BLK BB01 regmask=[allFloat] minReg=1 last>

The “@ 27” is the location number of the node. “internal” indicates a register that is internal to the node (in this case 2 internal registers are needed, one float (XMM on XARCH) and one int, as temporaries for copying). “regmask” indicates the register constraints for the RefPosition.

Notable features of RyuJIT LinearScan

Unlike most register allocators, LSRA performs register allocation on an IR (Intermediate Representation) that is not a direct representation of the target instructions. A given IR node may map to 0, 1 or multiple target instructions. Nodes that are “contained” are handled by code generation as part of their parent node and thus may map to 0 instructions. A simple node will have a 1-to-1 mapping to a target instruction, and a more complex node (e.g. GT_STORE_BLK) may map to multiple instructions.

Pre-conditions:

It is the job of the Lowering phase to transform the IR such that:

After Lowering has completed, liveness analysis is performed:

Allocation Overview

Allocation proceeds in 4 phases:

Post-conditions:

Code Generation

The process of code generation is relatively straightforward, as Lowering has done some of the work already. Code generation proceeds roughly as follows:

Phase-dependent Properties and Invariants of the IR

There are several properties of the IR that are valid only during (or after) specific phases of the JIT. This section describes the phase transitions, and how the IR properties are affected.

Phase Transitions

GenTree phase-dependent properties

Ordering:

LclVar phase-dependent properties

LclVar ref counts track the number of uses and weighted used of a local in the jit IR. There are two sequences of phases over which ref counts are valid, tracked via lvaRefCountState: an early sequence (state RCS_EARLY) and the normal sequence (state RCS_NORMAL). Requests for ref counts via lvRefCnt and lvRefCntWtd must be aware of the ref count state.

Before struct promotion the ref counts are invalid. Struct promotion enables RCS_EARLY and it and subsequent phases through morph compute and uses ref counts on some locals to guide some struct optimizations. After morph the counts go back to longer being valid.

The RCS_NORMAL sequence begins at normalization. Ref counts are computed and generally available via for the rest of the compilation phases. The counts are not incrementally maintained and may go stale as the IR is optimized or transformed, or maybe very approximate if the jit is not optimizing. They can be recomputed via lvaComputeRefCounts at points where accurate counts are valuable. Currently this happens before and after lower.

Supporting technologies and components

Instruction encoding

Instruction encoding is performed by the emitter (emit.h), using the insGroup/instrDesc representation. The code generator calls methods on the emitter to construct instrDescs. The encodings information is captured in the following:

GC Info

Reporting of live GC references is done in two ways:

The tracking of GC reference lifetimes is done via the GCInfo class in the JIT. It is declared in src/jit/jitgcinfo.h (to differentiate it from src/inc/gcinfo.h), and implemented in src/jit/gcinfo.cpp.

In a JitDump, the generated GC info can be seen following the “In gcInfoBlockHdrSave()” line.

Debugger info

Debug info consists primarily of two types of information in the JIT:

Exception handling

Exception handling information is captured in an EHblkDsc for each exception handling region. Each region includes the first and last blocks of the try and handler regions, exception type, enclosing region, among other things. Look at jiteh.h and jiteh.cpp, especially, for details. Look at Compiler::fgVerifyHandlerTab() to see how the exception table constraints are verified.

Reading a JitDump

One of the best ways of learning about the JIT compiler is examining a compilation dump in detail. The dump shows you all the really important details of the basic data structures without all the implementation detail of the code. Debugging a JIT bug almost always begins with a JitDump. Only after the problem is isolated by the dump does it make sense to start debugging the JIT code itself.

Dumps are also useful because they give you good places to place breakpoints. If you want to see what is happening at some point in the dump, simply search for the dump text in the source code. This gives you a great place to put a conditional breakpoint.

There is not a strong convention about what or how the information is dumped, but generally you can find phase-specific information by searching for the phase name. Some useful points follow.

How to create a JitDump

You can enable dumps by setting the DOTNET_JitDump environment variable to a space-separated list of the method(s) you want to dump. For example:

:: Print out lots of useful info when
:: compiling methods named Main/GetEnumerator
set "DOTNET_JitDump=Main GetEnumerator"

See Setting configuration variables for more details on this.

Full instructions for dumping the compilation of some managed code can be found here: viewing-jit-dumps.md

Reading expression trees

Expression trees are displayed using a pre-order traversal, with the subtrees of a node being displayed under the node in operand order (e.g. gtOp1, gtOp2). This is similar to the way trees are displayed in typical user interfaces (e.g. folder trees). Note that the operand order may be different from the actual execution order, determined by GTF_REVERSE_OPS or other means. The operand order usually follows the order in high level languages so that the typical infix, left to right expression a - b becomes prefix, top to bottom tree:

▌  SUB       double
├──▌  LCL_VAR   double V03 a
└──▌  LCL_VAR   double V02 b

Calls initially display in source order - Order(1, 2, 3, 4) is:

[000004] --C-G-------              *  CALL      void   Program.Order
[000000] ------------ arg0         +--*  CNS_INT   int    1
[000001] ------------ arg1         +--*  CNS_INT   int    2
[000002] ------------ arg2         +--*  CNS_INT   int    3
[000003] ------------ arg3         \--*  CNS_INT   int    4

but call morphing may change the order depending on the ABI so the above may become:

[000004] --CXG+------              *  CALL      void   Program.Order
[000002] -----+------ arg2 on STK  +--*  CNS_INT   int    3
[000003] -----+------ arg3 on STK  +--*  CNS_INT   int    4
[000000] -----+------ arg0 in ecx  +--*  CNS_INT   int    1
[000001] -----+------ arg1 in edx  \--*  CNS_INT   int    2

where the node labels (e.g. arg0) help identifying the call arguments after reordering.

Here is a full dump of an entire statement:

STMT00000 (IL 0x010...  ???)
[000025] --C-G-------              └──▌  RETURN    double
[000023] --C-G-------                 └──▌  CALL      double C.DblSqrt
[000022] ------------ arg0               └──▌  MUL       double
[000018] ------------                       ├──▌  MUL       double
[000014] ------------                       │  ├──▌  MUL       double
[000010] ------------                       │  │  ├──▌  LCL_VAR   double V03 loc0
[000013] ------------                       │  │  └──▌  SUB       double
[000011] ------------                       │  │     ├──▌  LCL_VAR   double V03 loc0
[000012] ------------                       │  │     └──▌  LCL_VAR   double V00 arg0
[000017] ------------                       │  └──▌  SUB       double
[000015] ------------                       │     ├──▌  LCL_VAR   double V03 loc0
[000016] ------------                       │     └──▌  LCL_VAR   double V01 arg1
[000021] ------------                       └──▌  SUB       double
[000019] ------------                          ├──▌  LCL_VAR   double V03 loc0
[000020] ------------                          └──▌  LCL_VAR   double V02 arg2

Tree nodes are identified by their gtTreeID. This field only exists in DEBUG builds, but is quite useful for debugging, since all tree nodes are created via the GenTree::GenTree constructor (in src/jit/compiler.hpp). If you find a bad tree and wish to understand how it got corrupted, you can place a conditional breakpoint at the end of GenTree::GenTree to see when it is created, and then a data breakpoint on the field that you believe is corrupted.

The trees are connected by line characters (either in ASCII, by default, or in slightly more readable Unicode when DOTNET_JitDumpASCII=0 is specified), to make it a bit easier to read.

Variable naming

The dump uses the index into the local variable table as its name. The arguments to the function come first, then the local variables, then any compiler generated temps. Thus in a function with 2 parameters (remember “this” is also a parameter), and one local variable, the first argument would be variable 0, the second argument variable 1, and the local variable would be variable 2. As described earlier, tracked variables are given a tracked variable index which identifies the bit for that variable in the dataflow bit vectors. This can lead to confusion as to whether the variable number is its index into the local variable table, or its tracked index. In the dumps when we refer to a variable by its local variable table index we use the ‘V’ prefix, and when we print the tracked index we prefix it by a ‘T’.

References

[1] P. Briggs, K. D. Cooper, T. J. Harvey, and L. T. Simpson, “Practical improvements to the construction and destruction of static single assignment form,” Software — Practice and Experience, vol. 28, no. 8, pp. 859—881, Jul. 1998.

[2] Wimmer, C. and Mössenböck, D. “Optimized Interval Splitting in a Linear Scan Register Allocator,” ACM VEE 2005, pp. 132-141. http://portal.acm.org/citation.cfm?id=1064998&dl=ACM&coll=ACM&CFID=105967773&CFTOKEN=80545349

This site is open source. Improve this page.
